S120 C/D type book-sized drive transfer guidence

Aug 04, 2023

What is C/D type drive?

Continuous motion: Discontinuous motion:

*Suitable for continuous load *Suitable for High dynamic intermittent load

*Short-term maximum current overload 200% *Short-term maximum current overload 300%
*MLFB: 6SL3120-xTExx-xACx *MLFB: 6SL3120-xTExx-xADx

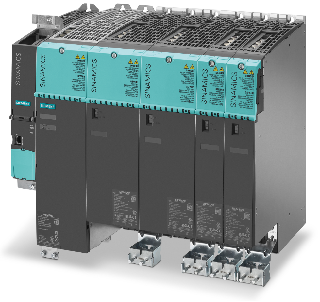

Book-Sized Motor Module C/D Type 3A to 30A
Rated Current	3A	5A	9A	18 A	30A
Single Motor Module	3A/9A 50 mm	5A/15A 50 mm	9A/27 A 50 mm	18 A/54 A 50 mm	30 A/90A 100 mm
Double Motor Module	2x3A/2x9A 50 mm	2x5A/2x15A 50 mm	2x9A/2x27A 50 mm	2x18A/2x54A 100 mm
Rated Current/Maximum Current，A Structure width: 50 mm or 100 mm				C Type
			Single Motor Module	18A/36 A 50 mm	30A/56 A 100 mm
			Double Motor Module	2x18A/2x36A 100 mm

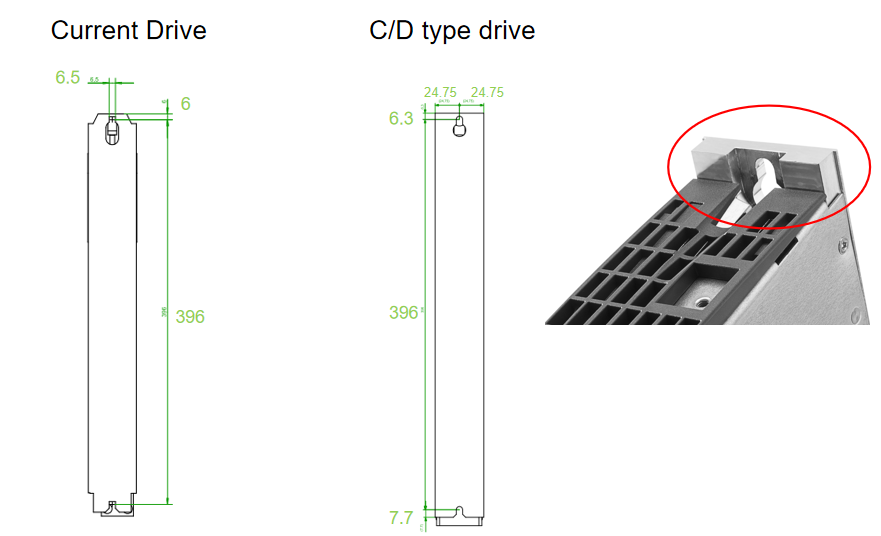

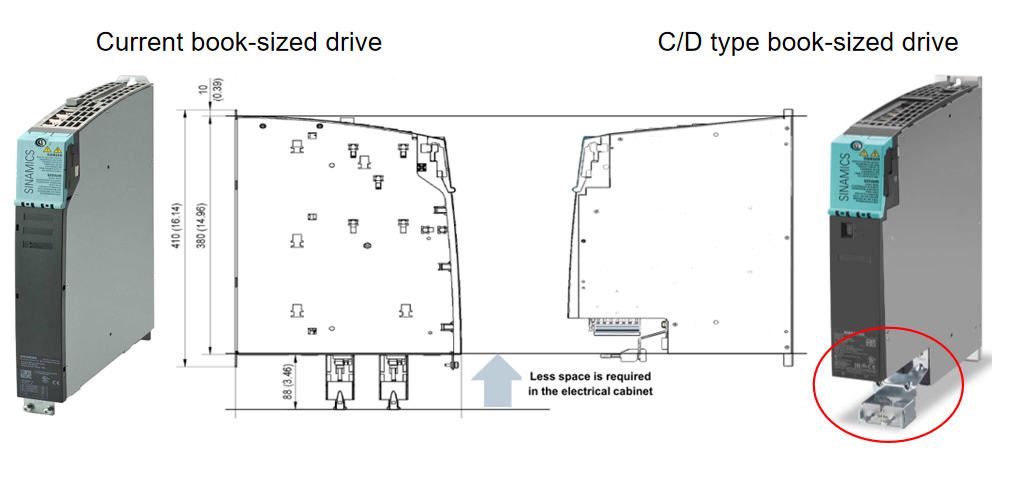

Drive's Width and Depth doesn't change. As the Power cable socket moved up, the height might reduce 70mm.

100% compact, and the back board of C/D type is much thick.

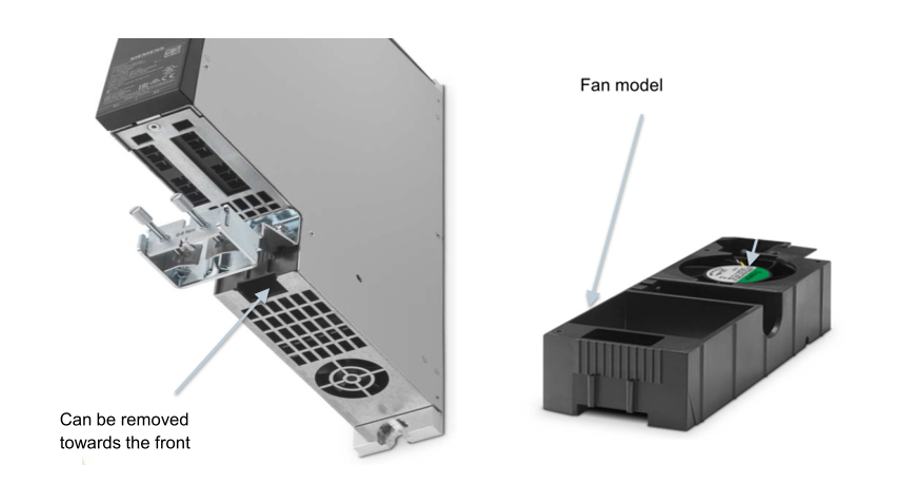

Easy to change Fan

Model conversion sheet

Drive Type	Current Type	D type Drive	C type Drive
Single Motor Modules, 3A	6SL3120-1TE13-0AA4 (3倍过载)	6SL3120-1TE13-0AD0
Single Motor Modules, 5A	6SL3120-1TE15-0AA4 (3倍过载)	6SL3120-1TE15-0AD0
Single Motor Modules, 9A	6SL3120-1TE21-0AA4 (3倍过载)	6SL3120-1TE21-0AD0
Single Motor Modules, 18A	6SL3120-1TE21-8AA4 (3倍过载)	6SL3120-1TE21-8AD0	6SL3120-1TE21-8AC0
Double Motor Modules, 3A	6SL3120-2TE13-0AA4 (3倍过载)	6SL3120-2TE13-0AD0
Double Motor Modules, 5A	6SL3120-2TE15-0AA4 (3倍过载)	6SL3120-2TE15-0AD0
Double Motor Modules, 9A	6SL3120-2TE21-0AA4 (3倍过载)	6SL3120-2TE21-0AD0
Double Motor Modules, 18A	6SL3120-2TE21-8AA3 (2倍过载)	6SL3120-2TE21-8AD0	6SL3120-2TE21-8AC0
Single Motor Modules, 30A	6SL3120-1TE23-0AA4 (2倍过载)	6SL3120-1TE23-0AD0	6SL3120-1TE23-0AC0

描述Dd

MLFB

Current Single 3A

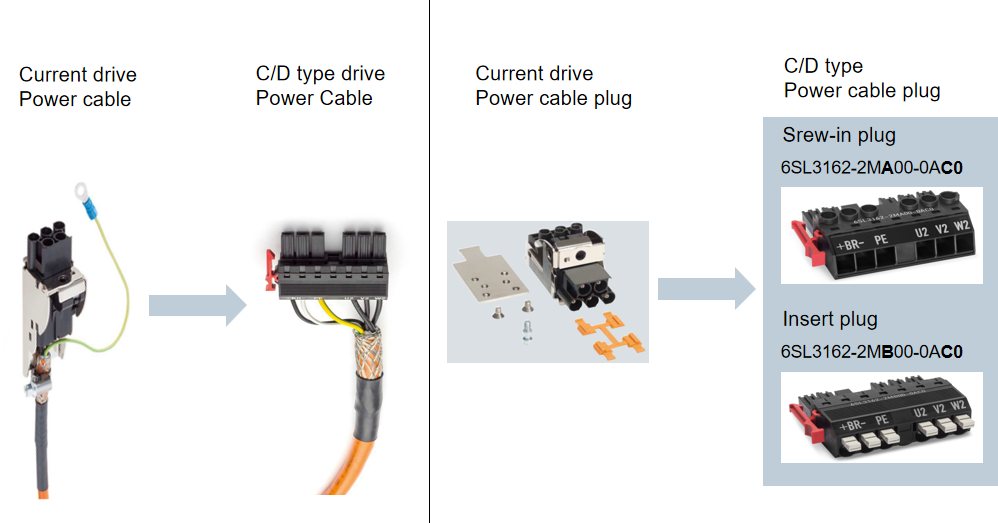

Power cable

6SL3120-1TE13-0AA4

6FX5002-5CN01-1AJ0

D type Single 3A

C/D type power cable

6SL3120-1TE13-0AD0

6FX5002-5CN06-1AJ0

Current Single 5A

Power cable

6SL3120-1TE15-0AA4

6FX5002-5CN01-1AJ0

D type Single 5A

C/D type power cable

6SL3120-1TE15-0AD0

6FX5002-5CN06-1AJ0

Current Single 9A

Power cable

6SL3120-1TE21-0AA4

6FX5002-5CN01-1AJ0

D type Single9A

C/D type power cable

6SL3120-1TE21-0AD0

6FX5002-5CN06-1AJ0

Current Single 18A

Power cable

6SL3120-1TE21-8AA4

6FX5002-5CN21-1AJ0

C type Single 18A

C/D type power cable

6SL3120-1TE21-8AC0

6FX5002-5CN26-1AJ0

D type Single 18A

C/D type power cable

6SL3120-1TE21-8AD0

6FX5002-5CN26-1AJ0

Current Single 30A

Power cable

6SL3120-1TE23-0AA4

6FX5002-5CN31-1AJ0

C type Single 30A

C/D type power cable

6SL3120-1TE23-0AC0

6FX5002-5CN36-1AJ0

D type Single 30A

C/D type power cable

6SL3120-1TE23-0AD0

6FX5002-5CN36-1AJ0
